Accessory
DacMate
The analog and digital interface connecting PlateMate force plates to third-party data acquisition systems.
Contact for info
Bridges PlateMate to your existing DAQ chain — useful for research labs and integrations that need raw analog signals alongside the ForceMate software.
Contact us Datasheet30 days satisfaction guarantee
Any questions? Get in touch
About this product

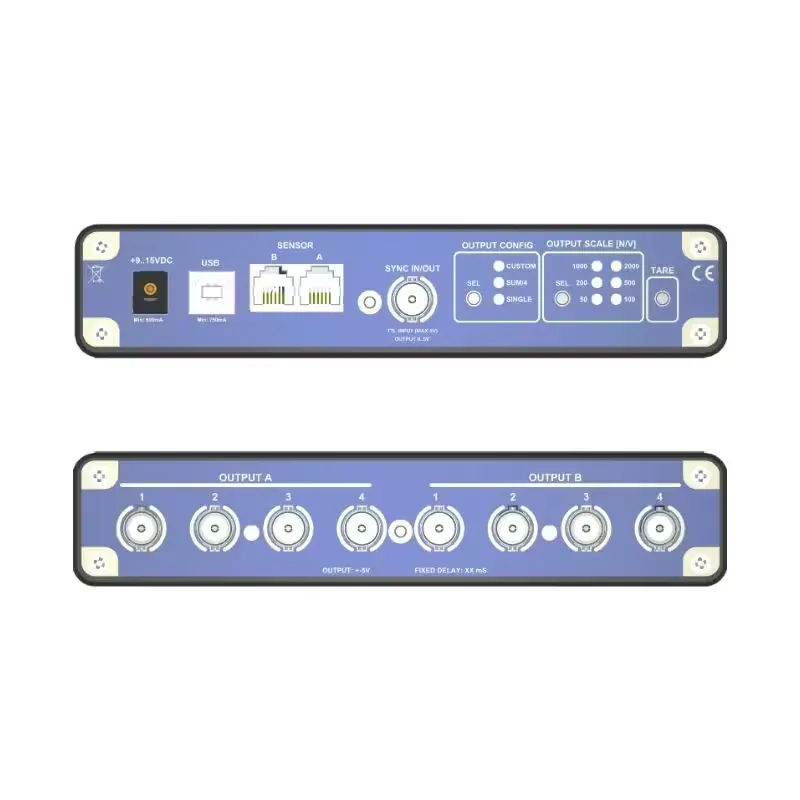

DacMate delivers eight 16-bit, low-noise, low-drift analog output channels, enabling seamless integration of up to two PlateMate force plates with any third-party data acquisition system.
Setup is plug-and-play: power DacMate via the USB 2.0 connector, connect your PlateMate force plates with the supplied cables, then route the analog outputs to your DAQ system using BNC coaxial cables. Select the preferred analog scaling and output configuration using the push buttons on the enclosure, or configure over USB with the CC Athletics DacMate tool.
Live, scaled, and calibrated analog signals are then fed to the selected outputs.
Specifications
- Analog outputs
- 8 channels, 16-bit, low-noise, low-drift
- Connectivity
- USB 2.0
- Force plate support
- Up to 2 PlateMate force plates
